Наконечники и соединители под опрессовку

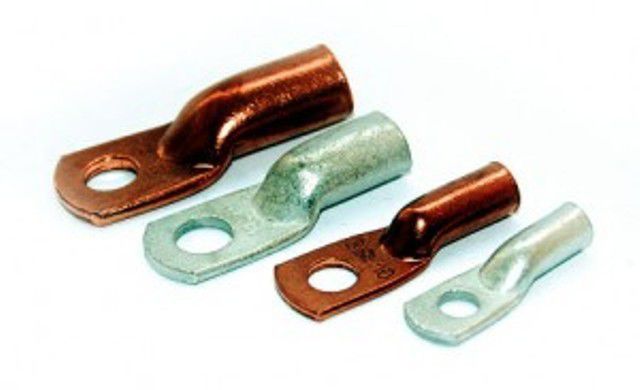

Наконечник кабельный медный под опрессовку ТМЛ и ТМ.
Наконечники медные ТМ/ТМЛ, закрепляемые опрессовкой, служат для оконцевания проводов и кабелей с медными жилами сечением от 2,5 до 240 мм². Наконечники изготавливаются из цельнотянутой медной трубы марки М2.
Представлены в двух климатических исполнениях:
без покрытия УХЛ 3 (тип ТМ);
электролитически луженые (тип ТМЛ)
|

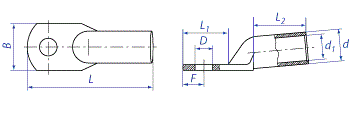

Наименование |
Размеры(мм) | |||||||
|
D |
B |
L |
L1 |
L2 |
F |
d |
d1 | |
|
ТМ/ТМЛ 2,5-5-2,6 (КВТ) |
5,3 |
10,0 |
28,0 |
12,0 |
10,0 |
7,0 |
5,0 |
2,6 |
|
ТМ/ТМЛ 2,5-6-2,6 (КВТ) |
6,4 |
12,0 |
30,0 |
14,0 |
10,0 |
7,0 |
5,0 |
2,6 |
|
ТМ/ТМЛ 4-5-3 (КВТ) |
5,3 |
10,0 |
32,0 |
16,0 |
12,0 |
7,0 |
5,0 |
3,0 |
|
ТМ/ТМЛ 4-6-3 (КВТ) |
6,4 |
12,0 |
32,0 |
16,0 |
12,0 |
8,5 |
5,0 |
3,0 |
|
ТМ/ТМЛ 6-5-4 (КВТ) |
5,3 |
10,0 |
32,0 |
16,0 |
12,0 |
7,0 |
6,0 |
4,0 |
|
ТМ/ТМЛ 6-6-4 (КВТ) |
6,4 |
12,0 |
32,0 |
16,0 |
12,0 |
8,5 |
6,0 |
4,0 |
|
ТМ/ТМЛ 10-5-5 (КВТ) |
5,3 |
11,0 |
40,0 |
20,0 |
14,0 |
7,0 |
8,0 |
5,0 |
|
ТМ/ТМЛ 10-6-5 (КВТ) |
6,4 |
14,0 |
40,0 |
20,0 |
14,0 |
8,5 |
8,0 |
5,0 |
|
ТМ/ТМЛ 10-8-5 (КВТ) |
8,4 |
16,0 |
40,0 |
20,0 |
14,0 |
11,0 |
8,0 |
5,0 |
|
ТМ/ТМЛ 16-6-6 (КВТ) |
6,4 |
14,0 |
40,0 |
20,0 |
14,0 |
8,5 |
9,0 |
6,0 |
|
ТМ/ТМЛ 16-8-6 (КВТ) |
8,4 |
16,0 |
40,0 |
20,0 |
14,0 |
11,0 |
9,0 |
6,0 |
|
ТМ/ТМЛ 25-6-7 (КВТ) |
6,4 |
15,0 |
45,0 |
20,0 |
20,0 |
8,5 |
10,0 |
7,0 |
|
ТМ/ТМЛ 25-8-7 (КВТ) |
8,4 |
16,0 |
45,0 |
20,0 |
20,0 |
11,0 |
10,0 |
7,0 |
|
ТМ/ТМЛ 25-8-8 (КВТ) |
8,4 |
16,0 |
50,0 |
22,0 |
20,0 |
11,0 |
11,0 |
0,8 |
|
ТМ/ТМЛ 25-10-8 (КВТ) |
10,5 |
20,0 |
50,0 |
22,0 |
20,0 |
11,0 |
11,0 |
8,0 |
|
ТМ/ТМЛ 35-8-9 (КВТ) |
8,4 |
18,0 |
60,0 |
22,0 |
24,0 |
11,0 |
12,0 |
9,0 |
|
ТМ/ТМЛ 35-10-9 (КВТ) |
10,5 |
20,0 |
60,0 |
22,0 |
24,0 |
11,0 |
12,0 |
9,0 |
|
ТМ/ТМЛ 35-12-9 (КВТ) |
13,0 |
22,0 |
60,0 |
25,0 |
24,0 |
13,5 |
12,0 |
9,0 |
|
ТМ/ТМЛ 35-8-10 (КВТ) |
8,4 |
20,0 |
63,0 |
25,0 |
24,0 |
11,0 |
13,0 |
10,0 |
|
ТМ/ТМЛ 35-10-10 (КВТ) |
10,5 |
20,0 |
63,0 |
25,0 |
24,0 |
12,5 |
13,0 |
10,0 |
|
ТМ/ТМЛ 35-12-10 (КВТ) |
13,0 |
22,0 |
63,0 |
25,0 |
24,0 |
13,5 |
13,0 |
10,0 |
|
ТМ/ТМЛ 50-8-11 (КВТ) |
8,4 |
20,0 |
63,0 |
25,0 |
24,0 |
11,0 |
14,0 |
11,0 |
|
ТМ/ТМЛ 50-10-11 (КВТ) |
10,5 |
22,0 |
63,0 |
25,0 |
24,0 |
12,5 |
14,0 |
11,0 |
|
ТМ/ТМЛ 50-12-11 (КВТ) |
13,0 |
24,0 |
63,0 |
25,0 |
24,0 |
13,5 |
14,0 |
11,0 |
|
ТМ/ТМЛ 70-10-13 (КВТ) |
10,5 |
24,0 |
65,0 |
27,0 |
26,0 |
12,5 |
16,0 |
13,0 |
|
ТМ/ТМЛ 70-12-13 (КВТ) |
13,0 |
24,0 |
65,0 |
27,0 |
26,0 |
13,5 |
16,0 |
13,0 |
|
ТМ/ТМЛ 95-10-15 (КВТ) |
10,5 |
28,0 |
75,0 |
27,0 |
32,0 |
12,5 |
19,0 |
15,0 |
|
ТМ/ТМЛ 95-12-15 (КВТ) |
13,0 |
28,0 |
75,0 |
27,0 |
32,0 |
13,5 |
19,0 |
15,0 |
|
ТМ/ТМЛ 95-10-16 (КВТ) |
10,5 |
30,0 |
75,0 |
27,0 |
32,0 |
12,5 |
20,0 |
16,0 |
|
ТМ/ТМЛ 95-12-16 (КВТ) |
13,0 |
30,0 |
75,0 |
27,0 |
32,0 |
13,5 |
20,0 |
16,0 |
|
ТМ/ТМЛ 120-12-17 (КВТ) |
13,0 |
34,0 |
81,0 |
34,0 |
32,0 |
13,5 |
22,0 |
17,0 |
|
ТМ/ТМЛ 120-16-17 (КВТ) |
17,0 |
34,0 |
81,0 |
34,0 |
32,0 |
16,0 |
22,0 |
17,0 |
|
ТМ/ТМЛ 120-12-18 (КВТ) |
13,0 |
35,0 |
85,0 |
34,0 |
34,0 |
13,5 |
24,0 |
18,0 |
|
ТМ/ТМЛ 120-16-18 (КВТ) |
17,0 |
35,0 |
85,0 |
34,0 |
34,0 |
16,0 |
24,0 |
18,0 |
|
ТМ/ТМЛ 150-12-19 (КВТ) |
13,0 |
36,0 |
90,0 |
34,0 |
34,0 |
13,5 |
25,0 |
19,0 |
|
ТМ/ТМЛ 150-16-19 (КВТ) |
17,0 |
36,0 |
90,0 |
34,0 |
34,0 |
16,0 |
25,0 |
19,0 |
|
ТМ/ТМЛ 150-12-20 (КВТ) |
13,0 |
38,0 |
90,0 |
34,0 |
34,0 |
13,5 |
26,0 |
20,0 |
|
ТМ/ТМЛ 150-16-20 (КВТ) |
17,0 |
38,0 |
90,0 |
34,0 |
34,0 |
16,0 |
26,0 |
20,0 |
|
ТМ/ТМЛ 185-16-21 (КВТ) |
17,0 |
40,0 |
95,0 |
41,0 |
38,0 |
16,0 |
27,0 |
21,0 |
|
ТМ/ТМЛ 185-20-21 (КВТ) |
21,0 |
40,0 |
95,0 |
41,0 |
38,0 |
18,5 |
27,0 |
21,0 |
|
ТМ/ТМЛ 185-16-23 (КВТ) |
17,0 |
45,0 |
105,0 |
41,0 |
38,0 |
16,0 |
30,0 |
23,0 |
|
ТМ/ТМЛ 185-20-23 (КВТ) |
21,0 |
45,0 |
105,0 |
41,0 |
38,0 |
20,0 |
30,0 |
23,0 |
|
ТМ/ТМЛ 240-16-24 (КВТ) |
17,0 |
48,0 |
105,0 |
41,0 |
38,0 |
16,0 |
32,0 |
24,0 |
|
ТМ/ТМЛ 240-20-24 (КВТ) |
21,0 |
48,0 |
105,0 |
41,0 |
38,0 |
20,0 |
32,0 |
24,0 |
Наконечник медный кабельный под опрессовку ТМЛ стандарта DIN.
|
Наименование |
Размеры(мм) | |||||||
|
D |
B |
L |
L1 |
L2 |
F |
d |
d1 | |
|
ТМЛ (DIN) 6-5-3,8 (КВТ) |
5,3 |
8,5 |
24,0 |
14,0 |
10,0 |
6,5 |
5,5 |
3,8 |
|
ТМЛ (DIN) 6-6-3,8 (КВТ) |
6,4 |
8,5 |
24,0 |
15,5 |
10,0 |
7,5 |
5,5 |
3,8 |
|
ТМЛ (DIN) 10-5-4,5 (КВТ) |
5,3 |
9,0 |
27,0 |
15,5 |
10,0 |
7,0 |
6,0 |
4,5 |
|
ТМЛ (DIN) 10-6-4,5 (КВТ) |
6,4 |
9,0 |
27,0 |
16,0 |
10,0 |
7,5 |
6,0 |
4,5 |
|
ТМЛ (DIN) 16-6-5,5 (КВТ) |
6,4 |
13,0 |
36,0 |
15,5 |
20,0 |
7,5 |
8,5 |
5,5 |
|
ТМЛ (DIN) 16-8-5,5 (КВТ) |
8,4 |
13,0 |
36,0 |
20,0 |
20,0 |
10,0 |
8,5 |
8,5 |
|
ТМЛ (DIN) 25-6-7 (КВТ) |
6,4 |
14,0 |
38,0 |
15,5 |
20,0 |
7,5 |
10,0 |
7,0 |
|
ТМЛ (DIN) 25-8-7 (КВТ) |
8,4 |
16,0 |
38,0 |
20,0 |
20,0 |
10,0 |
10,0 |
7,0 |
|
ТМЛ (DIN) 35-8-3,2 (КВТ) |
8,4 |
17,0 |
42,0 |
20,0 |
20,0 |
10,0 |
12,5 |
8,2 |
|
ТМЛ (DIN) 35-10-8,2 (КВТ) |
10,5 |
19,0 |
42,0 |
24,0 |
20,0 |
12,0 |
12,5 |
8,2 |
|
ТМЛ (DIN) 50-10-10 (КВТ) |
10,5 |
22,0 |
52,0 |
24,0 |
28,0 |
12,0 |
14,5 |
10,0 |
|
ТМЛ (DIN) 50-12-10 (КВТ) |
13,0 |
24,0 |
52,0 |
26,0 |
28,0 |
13,0 |
14,5 |
10,0 |
|
ТМЛ (DIN) 70-10-11,5 (КВТ) |
10,5 |
24,0 |
55,0 |
24,0 |
28,0 |
12,0 |
16,5 |
11,5 |
|
ТМЛ (DIN) 70-12-11,5 (КВТ) |
13,0 |
24,0 |
55,0 |
26,0 |
28,0 |
13,0 |
16,5 |
11,5 |
|
ТМЛ (DIN) 95-10-13,5 (КВТ) |
10,5 |
28,0 |
65,0 |
24,0 |
35,0 |
12,0 |
19,0 |
13,5 |
|
ТМЛ (DIN) 95-12-13,5 (КВТ) |
13,0 |
28,0 |
65,0 |
26,0 |
35,0 |
13,0 |
19,0 |
13,5 |
|
ТМЛ (DIN) 120-12-15,5 (КВТ) |
13,0 |
32,0 |
70,0 |
33,0 |
35,0 |
16,0 |
21,0 |
15,5 |
|
ТМЛ (DIN) 120-16-15,5 (КВТ) |
17,0 |
32,0 |
70,0 |
39,0 |
35,0 |
19,0 |
21,0 |
15,5 |
|
ТМЛ (DIN) 150-12-17 (КВТ) |
13,0 |
34,0 |
78,0 |
33,0 |
35,0 |
16,0 |
23,5 |
17,0 |
|
ТМЛ (DIN) 150-16-17 (КВТ) |
17,0 |
34,0 |
78,0 |
39,0 |
35,0 |
19,0 |
23,5 |
17,0 |
|
ТМЛ (DIN) 185-16-19 (КВТ) |
17,0 |
37,0 |
82,0 |
39,0 |
40,0 |
19,0 |
25,5 |
19,0 |
|
ТМЛ (DIN) 185-20-19 (КВТ) |
21,0 |
40,0 |
82,0 |
41,0 |
40,0 |
21,0 |
25,5 |
19,0 |
|
ТМЛ (DIN) 240-16-21,5 (КВТ) |
17,0 |
42,0 |
92,0 |
39,0 |
40,0 |
19,0 |
29,0 |
21,5 |
|
ТМЛ (DIN) 240-20-21,5 (КВТ) |
21,0 |
45,0 |
92,0 |
43,0 |
40,0 |
21,0 |
29,0 |
21,5 |
Наконечник алюмомедный кабельный под опрессовку ТАМ.
|
Наименование |
Размеры (мм) | ||||||||
|
D |
B |
L |
L1 |
L2 |
F |
S |
d |
d1 | |
|
ТАМ16-8-5,4 (КВТ) |
8,5 |
16,0 |
65,0 |
18,0 |
26,5 |
9,1 |
3,1 |
10,0 |
6,0 |
|
ТАМ25-8-7 (КВТ) |
8,5 |
18,0 |
70,0 |
22,0 |
30,0 |
9,2 |
3,1 |
12,0 |
7,0 |
|
ТАМ35-10-8 (КВТ) |
10,5 |
20,5 |
80,0 |
22,0 |
34,0 |
11,1 |
3,8 |
14,0 |
8,5 |
|
ТАМ50-10-9 (КВТ) |
10,5 |
23,0 |
85,0 |
22,0 |
35,0 |
12,1 |
4,3 |
16,0 |
9,8 |
|
ТАМ70-12-12 (КВТ) |
12,5 |
26,0 |
98,0 |
27,0 |
45,0 |
14,3 |
4,7 |
18,0 |
11,5 |
|
ТАМ95-12-13 (КВТ) |
12,5 |
28,0 |
116,0 |
29,0 |
50,0 |
15,8 |
5,0 |
21,0 |
13,5 |
|
ТАМ120-12-14 (КВТ) |
14,5 |
30,0 |
114,0 |
32,0 |
53,0 |
16,6 |
5,3 |
23,0 |
15,0 |
|
ТАМ150-12-17 (КВТ) |
14,5 |
34,0 |
116,0 |
35,0 |
46,0 |
18,2 |
6,1 |
25,0 |
16,5 |
|
ТАМ185-16-19 (КВТ) |
17,0 |
37,0 |
126,0 |
38,0 |
50,0 |
19,1 |
6,8 |
27,0 |
18,5 |
|
ТАМ240-16-20 (КВТ) |
17,0 |
40,0 |
135,0 |
40,0 |
60,0 |
20,1 |
7,0 |
30,0 |
21,0 |
Кабельные медные наконечники луженые под опрессовку ТМЛ (о)
|
Наименование |
Размеры(мм) | |||||||
|
D |
B |
L |
L1 |
L2 |
F |
d |
d1 | |
|
ТМЛ (о) 2,5-5-2,5 (КВТ) |
5,2 |
7,6 |
19,0 |
12,3 |
6,8 |
5,2 |
4,0 |
2,5 |
|
ТМЛ (о) 4-5-3,1 (КВТ) |
5,2 |
9,0 |
21,0 |
12,1 |
7,0 |
5,0 |
4,8 |
3,1 |
|
ТМЛ (о) 6-5-3,8 (КВТ) |
5,2 |
8,8 |
24,0 |
13,1 |
9,1 |
5,5 |
5,5 |
3,8 |
|
ТМЛ (о) 10-6-4,8 (КВТ) |
6,2 |
9,6 |
25,5 |
12,1 |
9,1 |
5,0 |
6,8 |
4,8 |
|
ТМЛ (о) 16-8-5,5 (КВТ) |
8,2 |
12,4 |
30,5 |
15,8 |
11.0 |
6,7 |
7,5 |
5,5 |
|
ТМЛ (о) 25-8-7 (КВТ) |
8,2 |
12,5 |
34,0 |
15,9 |
9,8 |
7,0 |
9,0 |
7,0 |
|
ТМЛ (о) 35-8-8,2 (КВТ) |
8,2 |
15,2 |
38,0 |
18,0 |
11,0 |
9,1 |
10,2 |
8,2 |
|
ТМЛ (о) 50-10-9,8 (КВТ) |
10,5 |
17,8 |
45,0 |
21,0 |
14,8 |
10,0 |
12,5 |
9,8 |
|
ТМЛ (о) 70-10-11,5 (КВТ) |
10,5 |
21,0 |
50,0 |
25,1 |
18,0 |
12,8 |
14,5 |
11,5 |
|
ТМЛ (о) 95-12-13,8 (КВТ) |
12,5 |
25,2 |
55,5 |
26,5 |
19,0 |
13,8 |
17,5 |
13,8 |
|
ТМЛ (о) 120-12-15,5 (КВТ) |
12,5 |
28,0 |
63,0 |
28,6 |
20,8 |
14,0 |
19,5 |
15,5 |
|
ТМЛ (o)150-16-16,5 (КВТ) |
16,5 |
30,9 |
71,0 |
31,1 |
24,6 |
16,0 |
21,0 |
16,5 |
|
ТМЛ (о) 185-16-18,8 (КВТ) |
16,5 |
34,0 |
78,0 |
34,0 |
31,2 |
17,1 |
23,5 |
18,8 |
|
ТМЛ (о) 240-16-21 (КВТ) |
16,5 |
38,3 |
92,0 |
39,5 |
37,0 |
20,0 |
26,5 |
21,0 |
Наконечник алюминиевый кабельный под опрессовку ТА.
|
Наименование |
Размеры (мм) | |||||||
|
D |
B |
L |
L1 |
L2 |
F |
d |
d1 | |
|
ТА 16-8-4,5 (КВТ) |
8,4 |
16,5 |
59,0 |
22,0 |
30,0 |
9,0 |
10,0 |
5,4 |
|
ТА 25-8-7 (КВТ) |
8,4 |
18,0 |
62,0 |
22,0 |
30,0 |
9,0 |
12,0 |
7,0 |
|
ТА 35-10-8 (КВТ) |
10,5 |
20,0 |
68,0 |
27,0 |
30,0 |
12,0 |
14,0 |
8,0 |
|
ТА 50-10-9 (КВТ) |
10,5 |
23,0 |
75,0 |
27,0 |
36,0 |
12,0 |
16,0 |
9,0 |
|
ТА 70-10-12 (КВТ) |
10,5 |
25,0 |
86,0 |
32,0 |
38,0 |
13,0 |
18,0 |
12,0 |
|
ТА 95-12-13 (КВТ) |
13,0 |
28,0 |
89,0 |
32,0 |
40,0 |
13,0 |
20,0 |
13,0 |
|
ТА 120-12-14 (КВТ) |
13,0 |
33,0 |
96,0 |
32,0 |
48,0 |
13,0 |
22,0 |
14,0 |
|
ТА 150-12-17 (КВТ) |
13,0 |
34,0 |
107,0 |
42,0 |
48,0 |
13,0 |
24,0 |
17,0 |
|
ТА 185-16-19 (КВТ) |
17,0 |
36,0 |
116,0 |
47,0 |
50,0 |
15,0 |
26,0 |
19,0 |
|
ТА 240-20-20 (КВТ) |
21,0 |
40,0 |
126,0 |
52,0 |
53,0 |
19,0 |
28,0 |
20,0 |
